Palashbari-Sualkuchi Bridge, India

This 3.6km long four-lane extradosed prestressed concrete bridge will cross the Brahmaputra River, connecting Palashbari to the prominent silk-weaving hub of Sualkuchi.

This critical infrastructure project will bypass the highly congested Guwahati metropolitan area and cut travel times by hours, accelerating trade and economic development across Northeast India.

The Brahmaputra River presents one of the most challenging engineering environments in the world. Located in Seismic Zone V (India’s highest risk), victim to extreme monsoon flooding, and highly variable alluvial soils this area demands precise, ongoing measurement of internal stress changes for the life of the asset.

220 Soil Instruments Vibrating Wire Embedment Strain Gauges are cast directly into the concrete at critical stress points. Immune to moisture and electrical noise these units are built to last the bridge’s 100-year design life.

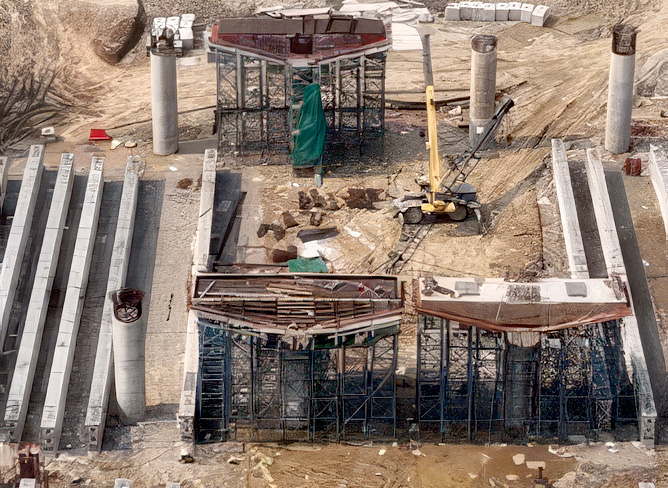

During construction, the bridge experiences rapidly shifting loads as concrete segments are cast-in-place using form travelers. The embedded gauges track micro-strain changes hourly and give engineers real-time confidence that:

• Post-tensioning forces match design targets
• Thermal cracking risks are caught early via integrated thermistors
• Cantilever segments stay balanced, protecting the piers

Once the bridge opens to traffic, the focus shifts to predictive asset management and structural preservation ensuring that:

• Cumulative fatigue from heavy truck traffic is tracked continuously
• Post-earthquake data immediately confirms whether the structure is safe or compromised
• Concrete creep and shrinkage are separated from actual structural degradation
